Basic Length, Width & Height Info - Ford E-Series vans
Listed below are the basic dimensions for the current generation E-Series Cargo Van and Passenger Wagon. For late model Econoline vans please see our Specifications page. For full dimensional information please see Ford.com.
***(Please note this information is subject to change)

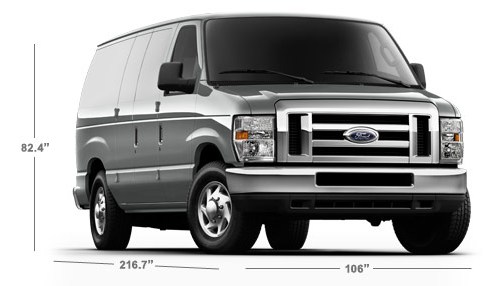

Ford E-Series Cargo Van Exterior Dimensions
- Wheelbase: 138 inches
- Length: 216.7 in (236.4 Extended Length)
- Height: 82.4 - 85 in
- Width: 106 in (79.4 No Mirrors / 84.6 Mirrors Folded)
- Front Track: 69.4 in
- Rear Track: 66.6 in
- Front Overhang: 34.9 in
- Rear Overhang: 43.8 in
Ford Econoline Cargo Van Interior Dimensions
- Head Room: 1st Row - 42 in | 2nd Row - 40.2
- Shoulder Room: 1st Row - 68.1 in | 2nd Row - 71.7
- Hip Room: 1st Row - 65.6 in | 2nd Row - 66.5
- Leg Room: 1st Row - 40 in | 2nd Row - 38.8
- Cargo Length (Floor): 122.4 in (142.4 Extended Length)
- Cargo Length (Belt): 114.3 in (134.3 Extended Length)
- Cargo Width Between Wheelhouse: 52.5 inches
- Cargo Height Maximum: 55.3 Inches

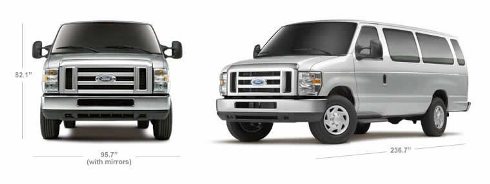

Ford E-Series Wagon (Passenger) Van Exterior Dimensions
- Wheelbase: 138 inches
- Length: 216.7 in (236.7 Extended Length)
- Height: 82.1, 82.3, 83.1
- Width: 95.7 in (79.4 No Mirrors)
- Front Track: 70.3 inches E150 | 69.4 inches E350 Regular & Extended
- Rear Track: 67.1 inches E150 | 66.6 inches E350 Regular & Extended
- Side cargo door opening height: 47.2 in
- Rear cargo opening height: 46.8 in | 48.0 inches Extended
Ford Wagon (Passenger) Van Interior Dimensions
- Head Room: 1st Row - 42 in | 2nd - 40.2 | 3rd - 40.1 | 4th - 38.9 | 5th - 37.4
- Shoulder Room: 1st Row - 68.1 in | 2nd - 71.7 | 3rd - 71.7 | 4th - 69.4 | 5th - 67.5
- Hip Room: 1st Row - 65.6 in | 2nd - 66.5 | 3rd - 66.8 | 4th - 66.1 | 5th - 65.8
- Leg Room: 1st Row - 40 in | 2nd - 38.8 | 3rd - 40 | 4th - 39.4 | 5th - 37
- Cargo Length (Floor): 120.6 in (140.6 Extended Length)
- Cargo Length (Belt): 113.7 in (133.7 Extended Length)
- Cargo Width Between Wheelhouse: 51.1 inches
- Cargo Height Maximum: 51.9 Inches
